V-Belt

Q: What are the sections of V belts?

V belts are divided into sections, each of which has been designed for a certain application. Sections such as A, B, C, D, E, and others are common. The parts represent the belt’s breadth and thickness. Larger sections, such as D and E, are used for heavy-duty applications, while smaller sections, such as A and B, are suitable for lighter loads.

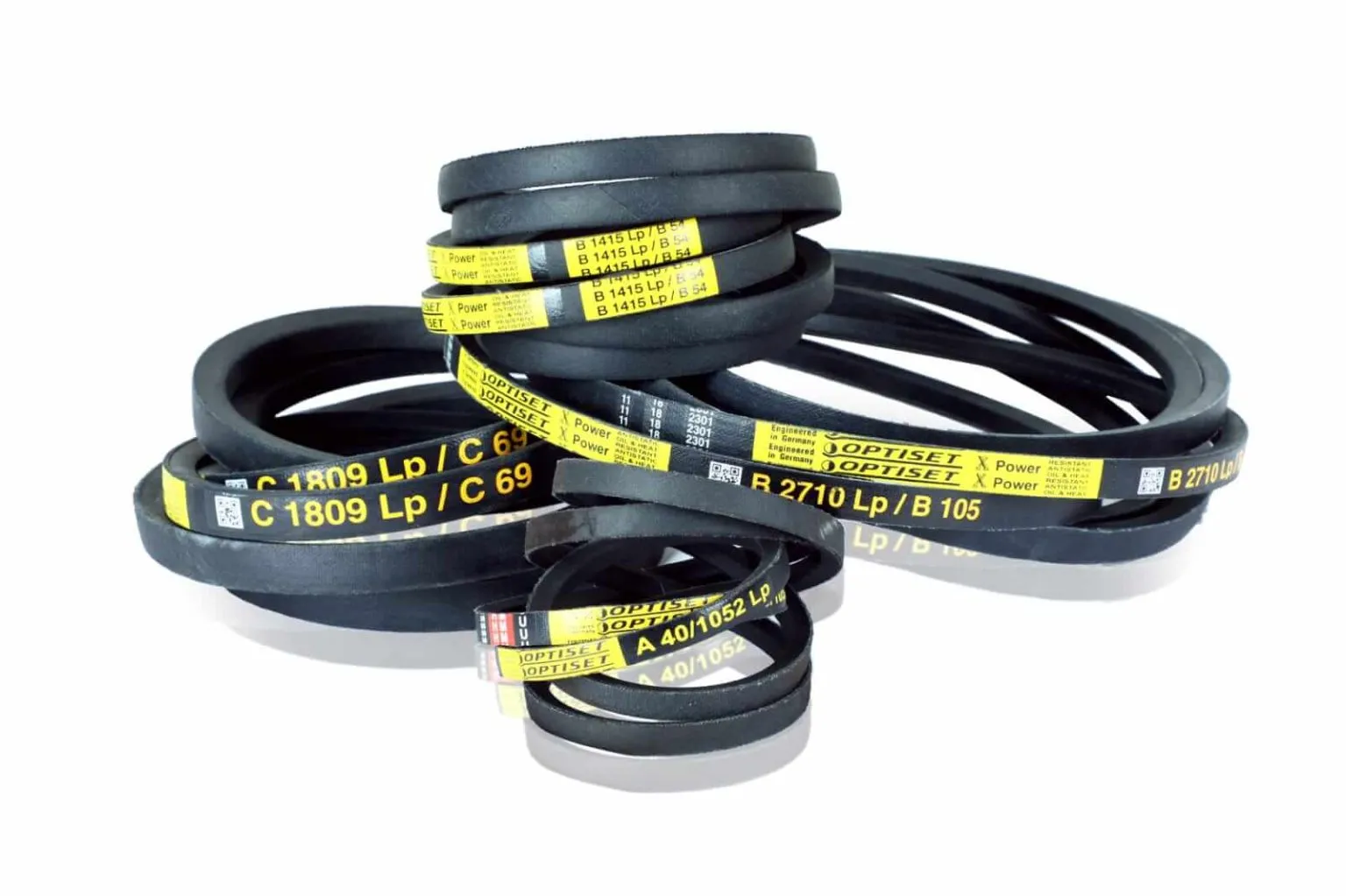

V-belts are widely used on high speed and high torque drives on light, heavy industrial and automotive machines. The Vee belts that are manufactured are incorporated with the latest art of technology and compiling all the IS : 2494 standards. These belts have exceptional length stability, have a great shock absorbing capacity and drive uniformity. The range of Industrial V Belts has different sections namely A, B, C, D and E.

Features :

This product is supplied under brand

Section	Dimension		Angle Deg	Pitch width (Wp)	Min Pulley Dia. mm	Details
Section	Tw mm	Th mm	Angle Deg	Pitch width (Wp)	Min Pulley Dia. mm	Details
8	8.0	5.0	40	6.7	40
Z	10.0	6.0	40	8.5	50
A	13.0	8.0	40	11.0	71	Details
B	17.0	11.0	40	14.0	112	Details
20	20.0	13.0	40	17.0	160
C	22.0	14.0	40	19.0	180	Details
25	25.0	16.0	40	21.0	250
D	32.0	19.0	40	27.0	355	Details
E	38.0	23.0	40	32.0	500	Details

Section	Dimension		Angle Deg	Pitch width (Wp)	Min Pulley Dia. mm
Section	Tw mm	Th mm	Angle Deg	Pitch width (Wp)	Min Pulley Dia. mm
SPZ	10.0	8.0	40	8.5	63
SPA	13.0	10.0	40	11.0	90
SPB	17.0	14.0	40	14.0	140
SPC	22.0	18.0	40	13.0	224

Section	Dimension		Angle Deg	Pitch width (Wp)	Min Pulley Dia. mm
Section	Tw mm	Th mm	Angle Deg	Pitch width (Wp)	Min Pulley Dia. mm
3V	9.7	8.0	40	9.7	63
5V	15.8	14.0	40	15.0	140
8V	25.4	23	40	25.4	335

V-Belts Manufacturer, Supplier and Exporter in India

Jigna Sales Corporation, India’s leading V-belt manufacturer, understands the importance of providing reliable power to your industrial equipment. V-belts, simplified yet effective, are the workhorses that keep your activities running smoothly.

Built for Endurance: Understanding V-Belt Construction

Our V-belts are optimized to withstand harsh industrial conditions. Here is a breakdown of their highlights:

High-tensile steel cables: The core of our V-belts is a high-tensile steel wire, which provides exceptional strength and the ability to handle significant loads. These steel cables ensure that your V-belts can meet the exacting demands of your machinery.

Flexible Rubber: The coatings on the steel tubes are fine rubber. This product offers two main functions. It gives the belt a characteristic V-shape and acts as a shock absorber, reducing vibration and ensuring smooth power transmission

Protective cover: The outermost layer is a protective cover, usually made of fabric or rubber that prevents corrosion. This cover protects the belt from external elements, prevents it from slipping and maintains a secure grip on the pulley.

A world of options: Choose the right V-belt for your needs. At Jigna Sales we offer a comprehensive range of V-belts to meet a variety of industrial applications. Here’s how we categorize them:

Dimensional variety: Our V-belts are available in a wide range of widths and heights, indicated by standard codes such as A, B, C, D, & E and specific alphanumeric combinations This ensures that you can find just the right fit for your pulley grooves.

Wedge vs. Wedge Classic: We offer both traditional V-shaped classical V-belts and advanced wedge V-belts with narrower, deeper profiles. Several wedge belts

Beyond Dimensions: Specialized V-Belt Options

Jigna Sales recognizes that particular applications may require special features. We offer other V-belt modifications, such as:

Protected V-belts: These belts have a fabric or elastomeric wrap for increased heat and oil resistance, ideal for tight spaces.

Serrated V-belts: These belts have molded teeth on the inside for excellent grip and safety in high-performance applications.

Ensuring efficiency: V-belt shaping considerations

Choosing the right size V-belt is crucial for maximizing performance and lifespan. Here are some key factors to consider:

Pulley Dimensions: The width and depth of your pulley grooves must precisely match the corresponding dimensions of your chosen V-belt.

Power Transmission Requirements: The V-belt's capacity to transmit power needs to be sufficient for your specific application's demands.

Speed and Load Conditions: The operating speed and load placed on the belt will influence the required strength and construction type.

Our experienced team at Jigna Sales is happy to assist you in selecting the optimal V-belt for your needs.

The V-Belt Advantage: Why They're the Ideal Choice

V-belts offer numerous advantages for industrial power transmission:

Simplicity and Cost-Effectiveness: V-belt drives are relatively simple to install, maintain, and generally less expensive than other options like gears or chains.

Versatility for Diverse Applications: With a wide range of sizes and types available, V-belts can be adapted to suit a vast array of industrial machinery.

Efficient Power Transfer: When properly sized and installed, V-belts offer excellent power transmission with minimal slippage.

Shock Absorption: The rubber compound in V-belts helps absorb shock and vibrations, protecting connected machinery and extending its lifespan.

Jigna Sales: Your Trusted V-Belt Partner

As a leading V-belt manufacturer in India, Jigna Sales is committed to providing high-quality V-belts that meet the rigorous demands of your industrial operations. We offer exceptional customer service and technical expertise to ensure you find the perfect V-belt solution for your needs.

Contact Us today to discuss your V-belt requirements and experience the difference of working with a reliable and trusted partner.

At Jigna Sales, we understand you might have questions about V-belts and their application in your industrial setting.

Jigna Sales: Your Partner in V-Belt Expertise

Contact Jigna Sales with any further questions you may have about V-belts or their suitability for your industrial applications. Our team of experts is happy to assist you in selecting the right V-belt for optimal performance and longevity

Benefits of Choosing Jigna Sales:

Jigna Sales is one of the leading V belt manufacturers India and V belt exporters in India. We have been in the business for over 30 years and has a reputation for producing high-quality belts that meet international standards. Choosing Jigna Sales for your V belt requirements ensures you get the best quality belts at a competitive price. We have a wide range of V belts in different sizes and specifications, making it easy to find the right belt for your application.

Frequently Asked Questions about V-Belt

How long do Jigna Sales V-belts typically last?

The lifespan of a V-belt depends on various factors like operating conditions, maintenance practices, and the specific belt type. However, Jigna Sales V-belts are built with high-quality materials and construction techniques, ensuring extended service life under normal operating conditions. We can provide more specific estimates based on your application details.

How to know if my V-belt needs replacing?

Some signs indicate a V-belt nearing replacement:

Visible cracks or excessive wear on the belt surface.
A glazed appearance on the belt.
The belt becomes loose and requires frequent adjustments.

If you notice any of these signs, contact Jigna Sales for a consultation. Our team can help diagnose the issue and recommend the appropriate course of action.

Can I replace a V-belt myself?

Replacing a V-belt can be achievable for those comfortable with basic mechanical work. However, if you’re unsure about the process or your specific equipment, it’s best to consult a qualified maintenance technician. Improper installation can lead to premature belt failure and potential damage to your machinery.

What information do I need to provide when requesting a quote for V-belts?

To provide you with the most accurate quote, it’s helpful to know:

The specific size and type of V-belt you require (refer to our sizing guide or consult our team for assistance).
The quantity of V-belts needed.
Any specific features required, such as wrapped covers or cogged designs.
Details about your application, including the type of machinery and operating conditions.

The more information you provide, the better we can tailor a V-belt solution to your exact needs.

What is the best type of V-belt?

The best V-belt for your machine is chosen by its individual application and needs. Classical V-belts, thin V-belts, and raw-edge V-belts are all common forms. Classical V-belts are flexible, thin V-belts are ideal for small drives, and raw-edge V-belts provide more flexibility and efficiency.

What is V-belt drive?

A V-belt drive is a mechanism that uses V-shaped belts to transmit power between two rotating pulleys. It is a widely used method in various industries for efficiently transferring power from the driving pulley to the driven pulley. V-belt drives are known for their flexibility, durability, and ease of installation.

What are flat-belt drives?

Flat belt drives are power transmission systems that use flat belts instead of V-shaped belts. These belts are typically larger and have a bigger surface area in contact with the pulleys. Flat belt drives are ideal for applications needing less intense engagement and are commonly seen in light-duty machines.

What are the sections of V-belts?

V-belts are divided into sections, each of which has been designed for a certain application. Sections such as A, B, C, D, E, and others are common. The parts represent the belt’s breadth and thickness. Larger sections, such as D and E, are used for heavy-duty applications, while smaller sections, such as A and B, are suitable for lighter loads.

What is the V-belt used for?

V-belts are used in machinery such as industrial equipment, vehicle engines, and domestic appliances to transport power between two shafts. They are flexible and can be used in a variety of applications, ranging from simple conveyor systems to complicated manufacturing gear. V-belts are used in power transmission because of reliability, efficiency, and cost-effectiveness.
